AC Circuits

Sinusoids and Phasors

  • Categories AC Circuits, Basic Electrical, Electrical Circuits
Sinusoids and Phasors (1)

Sinusoids and phasors are the two extremely important functions developed for analysing AC circuits. In this article you will learn what are sinusoids and phasors, why they are used and how they help in analysing AC circuits.

Table of Contents

  • Sinusoids
    • Why Sinusoids are used in AC Circuit Analysis?
    • Sinusoids in Circuit Analysis
  • Phasors
    • Basics of Complex Numbers
    • Phasor Representation

Sinusoids

A sinusoid is a signal that has the form of the sine or cosine function.

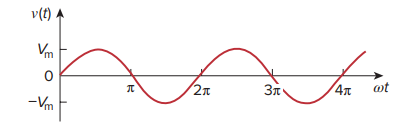

Sinusoid
A Sinusoidal Waveform

A sinusoidal current is usually referred to as alternating current (ac). Such a current reverses at regular time intervals and has alternately positive and negative values. Circuits driven by sinusoidal current or voltage sources are called ac circuits.

Why Sinusoids are used in AC Circuit Analysis?

Sinusoids and phasors are widely used in AC Circuit Analysis. We are interested in sinusoidal waveforms because of the following reasons.

Nature itself is characteristically sinusoidal
A sinusoidal signal is easy to generate and transmit.
Through Fourier analysis, any practical periodic signal can be represented by a sum of sinusoids.
A sinusoid is easy to handle mathematically
  • First, nature itself is characteristically sinusoidal.

We experience sinusoidal variation in the motion of a pendulum, the vibration of a string, the ripples on the ocean surface, and the natural response of underdamped second-order systems, to mention but a few.

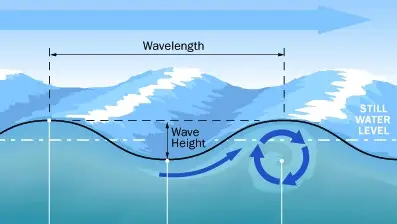

Sinusoid Ocean Wave
Natural Sinusoid Ocean Wave
  • Second, a sinusoidal signal is easy to generate and transmit.

It is the form of voltage generated throughout the world and supplied to homes, factories, laboratories, and so on. It is the dominant form of signal in the communications and electric power industries.

  • Third, through Fourier analysis, any practical periodic signal can be represented by a sum of sinusoids.

Sinusoids, therefore, play an important role in the analysis of periodic signals.

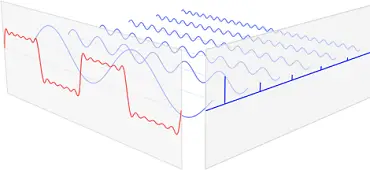

Step function simulated with sine waves
Step function simulated with sine waves
  • Lastly, a sinusoid is easy to handle mathematically. The derivative and integral of a sinusoid are themselves sinusoids.

For all the above reasons and other reasons, the sinusoid is an extremely important function in circuit analysis.

A sinusoidal forcing function produces both transient response and steady-state response, much like the step function.

The transient response dies out with time so that only the steady-state response remains. When the transient response has become negligibly small compared with the steady-state response, we say that the circuit is operating at sinusoidal steady-state.

Sinusoids in Circuit Analysis

Consider the sinusoidal voltage,

sinusoid

Where,

Vm = the amplitude of the sinusoid
 ω = the angular frequency in radians/s
 ωt = the argument of the sinusoid

Period of a Sinusoid

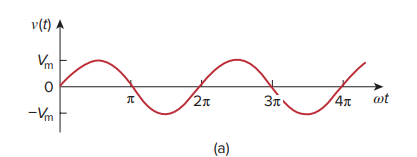

The figure shows the graphical representation of v(t) as a function of its argument ωt.

Sinusoid
VmSinωt as a function of ωt

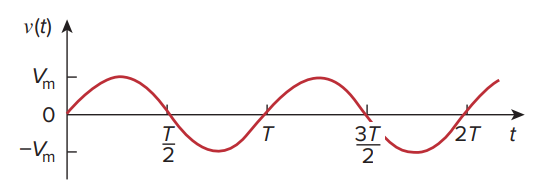

This same sinusoid can be represented as a function of time also.

Sinusoid as a function of t
VmSinωt as a function of t

It is evident that the sinusoid repeats itself every T seconds; thus, T is called the period of the sinusoid.

From the two plots above, we observe that

ωT = 2π

Hence, Time period of a sinusoid is,

Time Period of Sinusoid

Periodic Signal

A periodic function is one that satisfies Periodic signal, for all t and for all integers n.

The fact that v(t) repeats itself every T seconds is shown by replacing t by (t + T) in image 3.

png

Hence,

image 1

that is, v has the same value at t + T as it does at t and v(t) is said to be periodic

Frequency of a Sinusoid

As mentioned, the period T of the periodic function is the time of one complete cycle or the number of seconds per cycle.

The reciprocal of this quantity is the number of cycles per second, known as the cyclic frequency of the sinusoid.

Frequency

From the equations of time period and frequency, it is clear that, angular frequency,

Angular frequency

While ω is in radians per second (rad/s), f is in hertz (Hz).

The unit of f is named after the German
physicist Heinrich R. Hertz (1857–1894)

Phase and Argument

Let us now consider a more general expression for the sinusoid,

v(t) = Vm sin(ωt + ϕ)

where, ωt is the argument and ϕ is the phase.

Both argument and phase can be in radians or degrees.

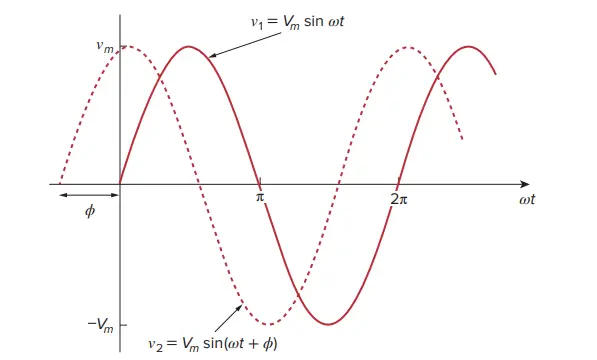

Let us examine the two sinusoids, v1(t) = Vm sin ωt and v2(t) = Vm sin (ωt + ϕ)

Two sinusoids with different phases.
Two sinusoids with different phases.

The starting point of v2 occurs first in time. Therefore, we say that v2 leads v1 by ϕ or that v1 lags v2 by ϕ.

If ϕ ≠ 0, we also say that v1 and v2 are out of phase. If ϕ = 0, then v1 and v2 are said to be in phase; they reach their minima and maxima at exactly the same time.

We can compare v1 and v2 in this manner because they operate at the same frequency; they do not need to have the same amplitude.

A sinusoid can be e xpressed in either sine or cosine form. When comparing two sinusoids, it is expedient to express both as either sine or cosine with positive amplitudes.

Some practice questions on sinusoids are given below.

  1. Find the amplitude, phase, period, and frequency of the sinusoid.
    v(t) = 12 cos(50t + 10°) V

    Solution:
    The amplitude is Vm = 12 V.
    The phase is ϕ = 10°.
    The angular frequency is ω = 50 rad/s.
    The period T = 2π/ω   = 2π/50 = 0.1257 s.
    The frequency is f = 1/T = 7.958 Hz.

  2. Calculate the phase angle between v1 = −10 cos(ωt + 50°) and v2 = 12 sin(ωt − 10°). State which sinusoid is leading.

    Calculate the phase angle

    Solution
    We may regard v1 as simply −10 cosωt with a phase shift of +50°. Hence, v1 is as shown in figure.
    Similarly, v2 is 12 sinωt with a phase shift of −10°, as shown in figure.
    It is easy to see that v2 leads v1 by 30°, that is, 90° − 50° − 10°.

Phasors

A phasor is a complex number that represents the amplitude and phase of a sinusoid.

Sinusoids are easily expressed in terms of phasors, which are more convenient to work with than sine and cosine functions.

Phasor method in ac circuit analysis is introduced by Charles Proteus Steinmetz (1865–1923). He is a German-Austrian mathematician and engineer. He is also noted for his work on the theory of hysteresis.

Phasors provide a simple means of analyzing linear circuits excited by sinusoidal sources; solutions of such circuits would be intractable otherwise. The notion of solving ac circuits using phasors was first introduced by Charles Steinmetz in 1893.

Before we completely define phasors and apply them to circuit analysis, we assume that you are thoroughly familiar with complex numbers.

Basics of Complex Numbers

A complex number z can be written in rectangular form as

z = x + jy

where j = √−1 ; x is the real part of z; y is the imaginary part of z.

The complex number z can also be written in polar or exponential form as,

polar or exponential form

where r is the magnitude of z, and ϕ is the phase of z.

We notice that z can be represented in three ways:

Complex number representation

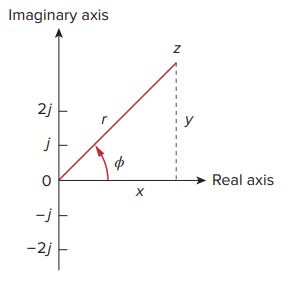

The relationship between the rectangular form and the polar form is
shown in the graph below.

Representation of a complex number
Representation of a complex number

Given x and y, we can get r and ϕ as,

png

On the other hand, if we know r and ϕ, we can obtain x and y as,

png

Thus, z may be written as,

%20%5Cphi%3Dr%28%5Ccos%20%5Cphi+j%20%5Csin%20%5Cphi%29%7D

Phasor Representation

The idea of phasor representation is based on Euler’s identity. In general,

png

which shows that cos ϕ and sin ϕ as the real and imaginary parts of ejϕ.

png

Given a sinusoid v(t) = Vm cos(ωt + ϕ), we use above equation to express v(t) as,

%20%5Cphi%20%5C%5C

V is thus the phasor representation of the sinusoid v(t).

In other words, a phasor is a complex representation of the magnitude and phase of a sinusoid.

A phasor may be regarded as a mathematical equivalent of a sinusoid with the time dependence dropped.

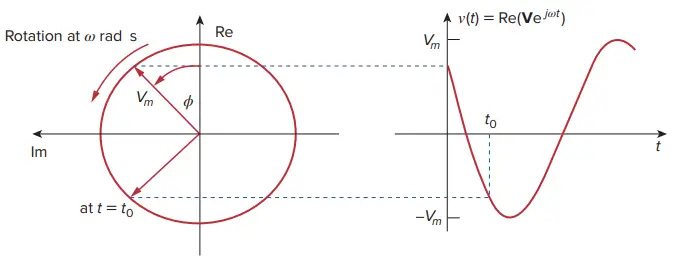

Consider the plot of the sinor Vejωt = Vmej(ωt+ϕ) on the complex plane.

As time increases, the sinor rotates on a circle of radius Vm at an angular velocity ω in the counterclockwise direction. We may regard v(t) as the projection of the sinor Vejωt on the real axis.

Representation of Vejωt
Representation of Vejωt

The value of the sinor at time t = 0 is the phasor V of the sinusoid v(t). The sinor may be regarded as a rotating phasor.

Thus, whenever a sinusoid is expressed as a phasor, the term ejωt is implicitly present. It is therefore important, when dealing with phasors, to keep in mind the frequency ω of the phasor; otherwise we can make serious mistakes.

Phasor Diagram

As a complex quantity, a phasor may be expressed in rectangular form, polar form, or exponential form. Because a phasor has magnitude and phase (“direction”), it behaves as a vector.

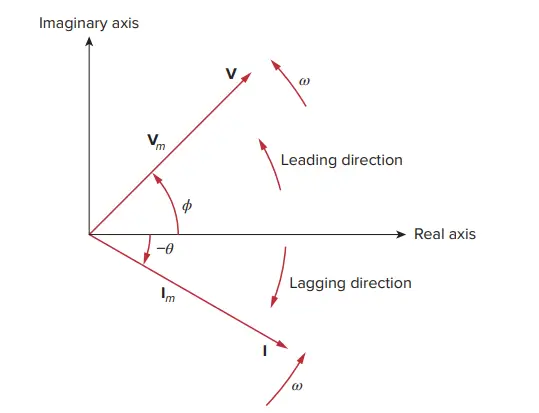

A graphical representation of phasors is known as a phasor diagram.

Phasor Diagram
Phasor Diagram

Phasor Domain and Time Domain

To get the phasor corresponding to a sinusoid, we first express the sinusoid in the cosine form so that the sinusoid can be written as the real part of a complex number.

Then we take out the time factor ejωt, and whatever is left is the phasor corresponding to the sinusoid.

By suppressing the time factor, we transform the sinusoid from the time domain to the phasor domain. This transformation is summarized as,

png

Given a sinusoid v(t) = Vm cos(ωt + ϕ), we obtain the corresponding phasor as V = Vm ∠ϕ.

In the last equation, the frequency (or time) factor ejωt is suppressed, and the frequency is not explicitly shown in the phasor domain representation because ω is constant.

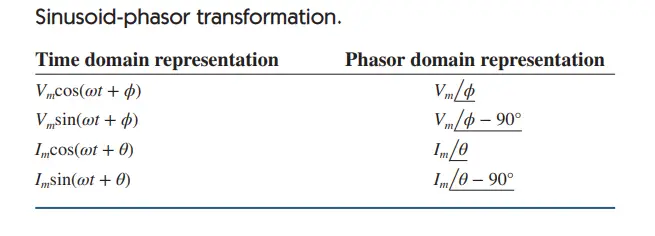

Sinusoids and Phasors Transformation
Sinusoids and Phasors Transformation

However, the response depends on ω. For this reason, the phasor domain is also known as the frequency domain.

png

This shows that the derivative v(t) is transformed to the phasor domain as jωV.

Derivative in time and phasor domain
Derivative in time and phasor domain

This allows the replacement of a derivative with respect to time with multiplication of jω in the phasor domain.

Similarly, the integral of v(t) is transformed to the phasor domain as V∕jω

Integral time and phasor domain
Integral time and phasor domain

This allows the replacement of an integral with respect to time with division by jω in the phasor domain.

Both equations are useful in finding the steady-state solution, which does not require knowing the initial values of the variable involved. This is one of the important applications of phasors.

Besides time differentiation and integration, another important use of phasors is found in summing sinusoids of the same frequency.

Adding sinusoids of the same frequency is equivalent to adding their corresponding phasors.

The differences between v(t) and V should be emphasized:

  1. v(t) is the instantaneous or time domain representation, while V is the frequency or phasor domain representation.
  2. v(t) is time dependent, while V is not. (This fact is often forgotten by students.)
  3. v(t) is al ways real with no complex term, while V is generally complex.

Finally, we should bear in mind that phasor analysis applies only when frequency is constant; it applies in manipulating two or more sinusoidal signals only if they are of the same frequency.

Some practice problems on sinusoids and phasors are given below.

Transform these sinusoids to phasors:
(a) i = 6 cos(50t − 40°) A
(b) v = −4 sin(30t + 50°) V

Solution:
(a) i = 6 cos(50t − 40°) has the phasor
I = 6∠−40° A

(b) Since −sin A = cos(A + 90°),
 v = −4 sin(30t + 50°) = 4 cos(30t + 50° + 90°)
= 4 cos(30t + 140°) V
The phasor form of v is
V = 4∠ 140° V

Find the sinusoids represented by these phasors:
(a) I = −3 + j4 A
(b) V = j8e−j20° V

Solution:
(a) I = −3 + j4 = 5∠ 126.87°. Transforming this to the time domain gives
i(t) = 5 cos(ωt + 126.87°) A

(b) Because j = 1∠ 90°,
V = j8∠−20° = (1∠ 90°)(8∠−20°)
= 8∠⧸ 90° − 20° = 8∠ 70° V
Converting this to the time domain gives
v(t) = 8 cos(ωt + 70°)V
